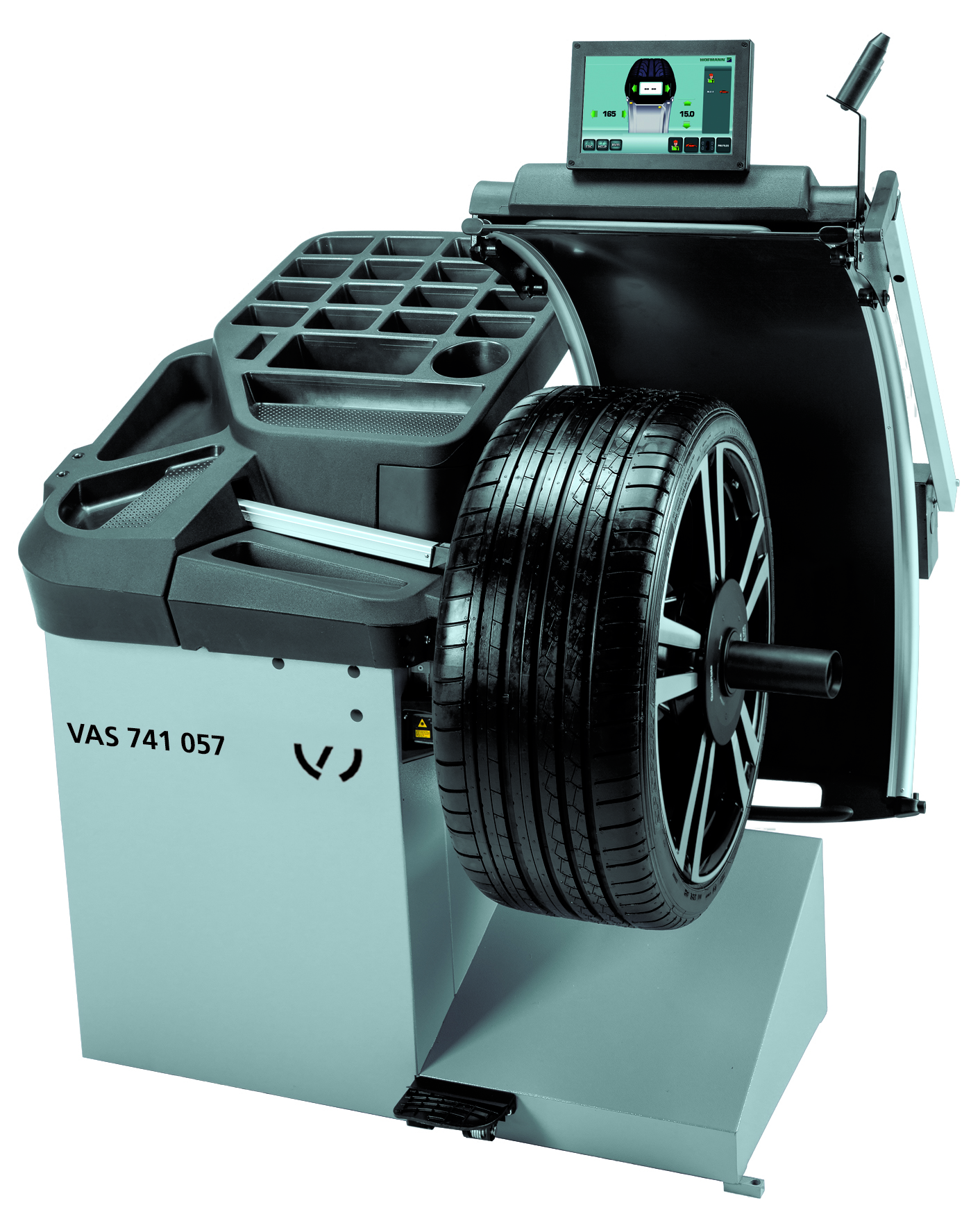

VAS 741 057 Geodyna 7700p – RAL 7040 + VAS label
DIGITAL CAR WHEEL BALANCER WITH GEOTOUCH™ DISPLAY
PRODUCT DESCRIPTION
The wheel balancer with Power Clamp Device and easyWEIGHT™ pinpoint laser light indicator for tyre shops, car dealerships and garages with medium to high tyre service volume. With geoTOUCH™ – the touch-screen graphical display with DIAMOND user interface – the VAS 741 057 is as intuitive as a video balancer.
- with torque-controlled Power Clamp™ device – for shop with high tyre service volume
- geoTOUCH™ – the touchscreen graphical display, 10” wide, with DIAMOND user interface – makes VAS 741 057 as intuitive as a video balancer
- Automatic rim width acquisition via Smart Sonar™ – fast and easy
- Stop-in-Position: the operator only has to touch the amount of unbalance on the display and the wheel is automatically indexed to correction position
- easyWEIGHT™: the pinpoint laser light indicator to accurately and conveniently position adhesive weights
- Semi-automatic pre-selection of balancing mode via easyALU™
- Split weight mode
- Weight minimisation and optimisation
- Rim lighting iLED™ – new, very bright LED technology, switched in when required
- Patented telescopic wheel guard – no additional space required behind the machine
- Two users with rapid switch function
- Network printing capability – Compatible with asanetwork
- WI-FI connectivity
- VPM measurement technique for uncompromised accuracy
- QuickBAL™ for reduced measurement time:
Short start-stop cycle time: 4.5 seconds (15” rim) - Clamping of wheel on tapered shaft with cone adaptor
| Motorized | Yes |
| Wheel clamping | Power Clamp |
| Diametre of shaft | 40 mm |
| Measuring speed | < 200 rpm |
| Balancing accuracy | 1 g |
| Angular resolution | ± 0,35° |
| Lenght of shaft | 225 mm |
| Rim diameter range | 8″ – 32″ |
| Offset range | 1″ – 20″ |
| Rim width range | 1″ – 20″ |
| Max. wheel diameter | 1050 mm |
| Max. wheel weight | 70 kg |
| Input power (amperage) | 4 A |
| Input power (VAC) | 230 VAC 1ph 50/60 Hz |
| Dimensions LxWxH | 1380 x 1020 x 1570 mm |
| Weight | 165 kg |
